msPCA

Sparse PCA with multiple principal components in R.

The msPCA package computes sparse loading vectors that explain a high fraction of variance while controlling non-redundancy across components. It supports two non-redundancy definitions:

• orthogonality of loading vectors,
• zero pairwise correlation of components.

Installation

Install from CRAN:

install.packages("msPCA")
library(msPCA)

Install development version from GitHub:

install.packages("devtools")
devtools::install_github("jeanpauphilet/msPCA")
library(msPCA)

Quick start

The main function is mspca().

Inputs (following the elasticnet convention, the data is a single argument M plus a type selector):

• M: the data matrix,
• type: "Sigma" (default) treats M as a covariance/correlation matrix (p x p); "X" treats M as a raw data matrix (n observations x p variables),
• r: number of sparse principal components,
• ks: integer vector of length r with sparsity budgets.

With type = "X", mspca() applies the algorithm to the data directly via the products t(X) %*% (X %*% beta) and never forms the p x p matrix. This is substantially faster and more memory-efficient when n << p. Pass type = "X" whenever the number of variables greatly exceeds the number of observations.

Output fields:

• x_best: sparse loading matrix (p x r),
• objective_value,
• feasibility_violation,
• runtime.

Example on mtcars:

library(msPCA)

Sigma <- cor(datasets::mtcars)
set.seed(42)

res <- mspca(Sigma, r = 2, ks = c(4, 4), verbose = FALSE)   # type = "Sigma" is the default
print_mspca(res, Sigma)

feasibility_violation_off(Sigma, res$x_best, feasibilityConstraintType = 0)
fraction_variance_explained(Sigma, res$x_best)

Equivalent workflow from the raw data matrix (no covariance matrix needed):

library(msPCA)

X <- as.matrix(datasets::mtcars)
set.seed(42)

# type = "X" treats the first argument as raw data; scale = TRUE operates on the
# correlation matrix, matching cor(mtcars) above.
res <- mspca(X, r = 2, ks = c(4, 4), type = "X", scale = TRUE, verbose = FALSE)
print_mspca(res)                      # type = "X" results carry their own variance summary

fraction_variance_explained(cor(X), res$x_best)

For datasets with n << p, this raw-data path avoids the O(np^2) cost of forming Sigma and reduces each iteration’s matrix–vector product from O(p^2) to O(np).

Optional dense PCA comparison:

pca_res <- prcomp(datasets::mtcars, scale. = TRUE)
fraction_variance_explained(Sigma, pca_res$rotation[, 1:2])

Interpretation:

• Dense PCA usually explains more variance.
• Sparse PCA improves interpretability by restricting each component to a small set of features.

See vignette("msPCA") for a worked example built from the same mtcars workflow.

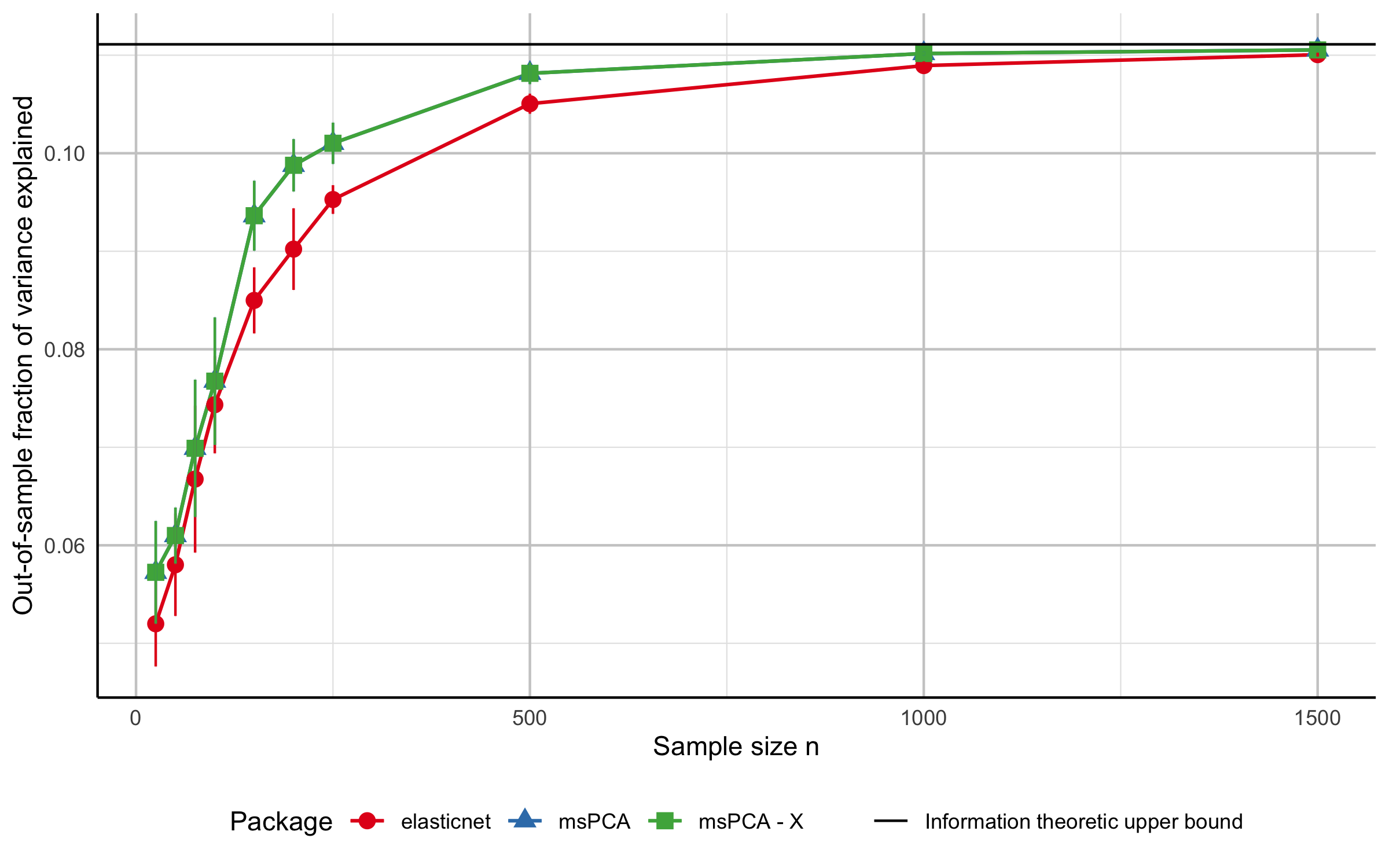

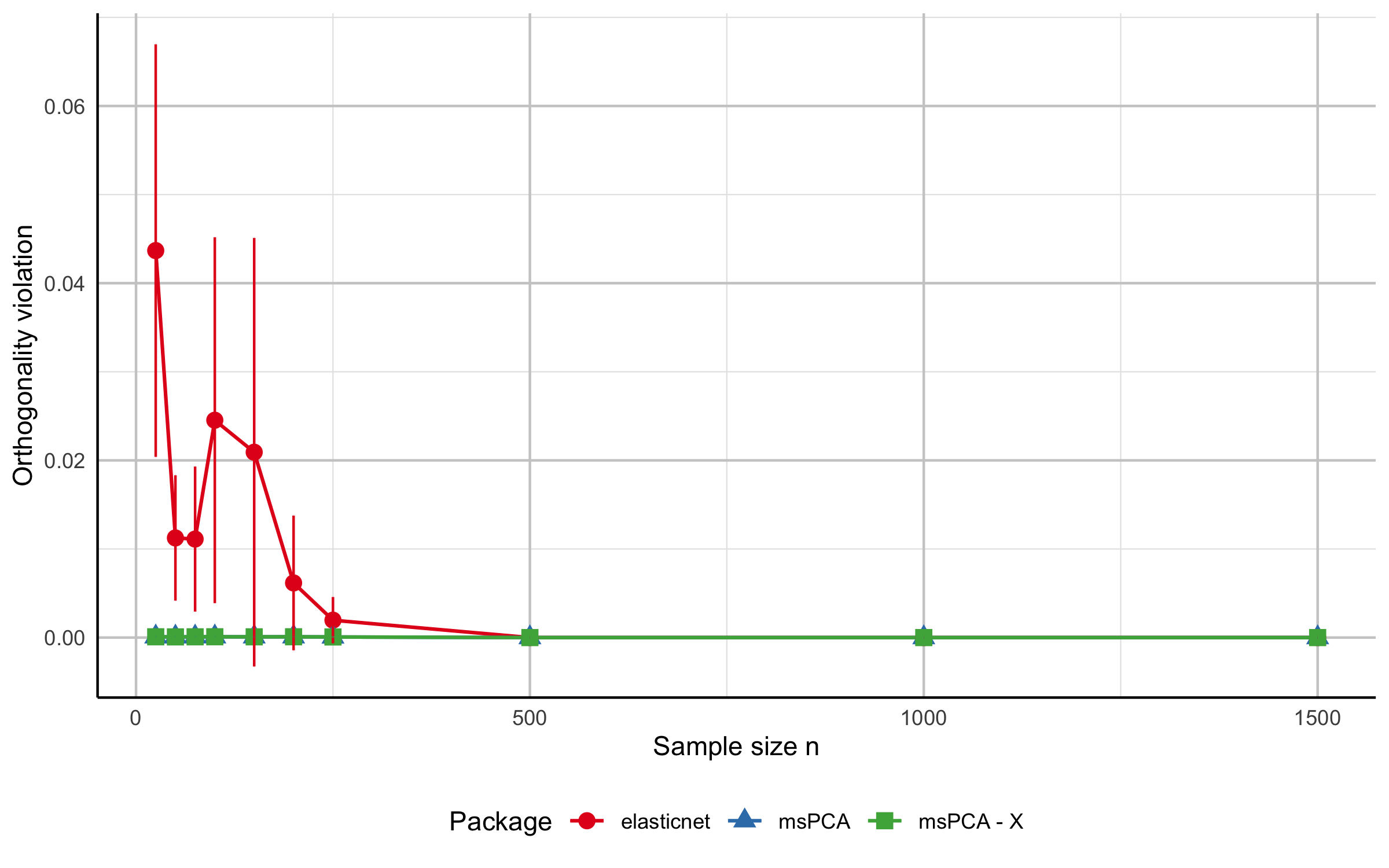

Synthetic benchmark

The script test/notebook_synthetic.R compares msPCA with elasticnet::spca() on synthetic data across sample sizes and exports the figures below.

To regenerate these files, run test/notebook_synthetic.R from the repository root.

Choosing parameters

Sparsity budgets (ks)

ks is the main tuning input. A practical workflow is to run mspca() for multiple sparsity budgets and evaluate:

• fraction of variance explained (fraction_variance_explained()),
• feasibility violation (feasibility_violation_off()),
• interpretability of nonzero loadings.

Constraint type (feasibilityConstraintType)

• 0 (default): orthogonality constraints on loading vectors.
• 1: zero pairwise correlation constraints on components.

Use 0 when loadings are used as a geometric projection basis. Use 1 when statistical decorrelation of component scores is the priority.

Main functions

• mspca(M, r, ks, type = c("Sigma", "X"), ...): multiple sparse PCs.
• tpm(M, k, type = c("Sigma", "X"), ...): single sparse PC via truncated power method.

Useful optional arguments in mspca():

• feasibilityConstraintType
• feasibilityTolerance
• maxIter
• stallingTolerance
• timeLimitTPM
• maxRestartTPM
• minRestartTPM

Raw-data arguments (type = "X"):

• center (default TRUE), scale (default TRUE, set FALSE for covariance),
• divisor ("n-1" for the sample covariance, the default, or "n").

Covariance-matrix validation arguments (type = "Sigma"):

• checkPSD (default TRUE), symTolerance, psdTolerance.

Diagnostic functions

• fraction_variance_explained(Sigma, U)
• fraction_variance_explained_perPC(Sigma, U)
• variance_explained_perPC(Sigma, U)
• feasibility_violation_off(Sigma, U, feasibilityConstraintType)
• print_mspca(sol_object, Sigma, digits = 3)

Citation

If you use msPCA in academic work, please cite the package and the underlying paper.

You can retrieve the package citation in R with:

citation("msPCA")

Reference paper:

@article{cory2026sparse,
  title   = {Sparse PCA with Multiple Principal Components},
  author  = {Cory-Wright, Ryan and Pauphilet, Jean},
  year    = {2026},
  journal = {Operations Research},
  doi     = {10.1287/opre.2023.0598}
}

Development

Package structure overview:

• R/
  • main.R: user-facing functions and helper diagnostics.
  • RcppExports.R: R interface for compiled code (typically generated with Rcpp::compileAttributes()).
• src/
  • msPCA_R_CPP.cpp: C++ implementation of the core algorithm and the dense/raw-data entry points.
  • CovOperator.h: covariance-operator abstraction (DenseOp for Sigma, GramOp for X).
  • ConstantArguments.h: internal algorithm constants.
  • RcppExports.cpp: generated C++ interface.
  • Makevars, Makevars.win: compilation settings.
• man/: function documentation generated from roxygen comments.
• test/
  • notebook_mtcars.R
  • notebook_plot.R
  • notebook_synthetic.R
  • msPCA_synthetic_results.csv

For interface changes, regenerate exports and documentation with Rcpp::compileAttributes() and devtools::document().

License

See LICENSE.
