A plethora of sea current databases is typically available along many fields data (e.g. Lima et al. (2020)). However, transforming these data into a graph structure is not a straightforward implementation. This gap is attempted to be filled by SeaGraphs package. A further inspection of the methods used in this package is illustrated at Nagkoulis et al. (2025), where the whole Black Sea is examined.
Development version of the package can be installed using:
if (!require(remotes)) install.packages("remotes")
remotes::install_github("cadam00/SeaGraphs")Nagkoulis N, Adam C, Mamoutos I, Mazaris AD, Katsanevakis S, 2025. An ecological connectivity dataset for Black Sea obtained from sea currents. Data in Brief 58: 111268. https://doi.org/10.1016/j.dib.2024.111268
Currents information about the flow directions is usually split into
horizontal (\(u\)) and vertical (\(v\)) components, regarding the horizontal
and the vertical flow of the currents, respectively. As an example we
use a modified yearly aggregated subset of the Black Sea site (Lima et
al., 2020; Schulzweida, 2023) provided in the form of
SpatRaster elements. This input can be plotted using the
following:
# Import packages
library(SeaGraphs)
library(terra)
# Get example u and v components
component_u <- get_component_u()
component_v <- get_component_v()
# Plot each component
par(mfrow=c(1,2), las=1)
plot(component_u, main="u")
plot(component_v, main="v")

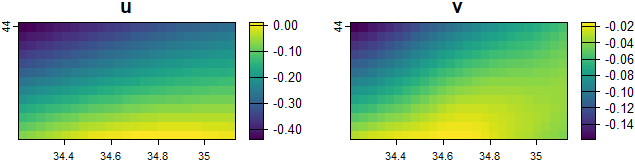

Figure 1: Currents \(u\) and \(v\) components.
In Figure 1 the two directions of
components \(u\) and \(v\) are presented, with higher currents
values detected at the South-West direction. A directed spatial graph in
multiple forms (spatial network, shapefile, edge list, adjacency matrix)
based on these components is constructed, based on these two components
using the following process. This is doable by running the
seagraph command as follows:
# Transform currents information to graph
graph_result <- seagraph(component_u = component_u,
component_v = component_v)Flow and antpath leaflet maps are two possible graphical
representations of such graphs using the SeaGraphs could be
performed, but using graph_result elements, like the
shapefile one is possible as well. Note that the South-Western
directions of flows and magnitudes the final graphs are depicted in both
Figures 2 and 3.
Note that these outputs are dependent on the selected number of nearest
neighbors in the seagraph function.
flows_sfn(graph_result)

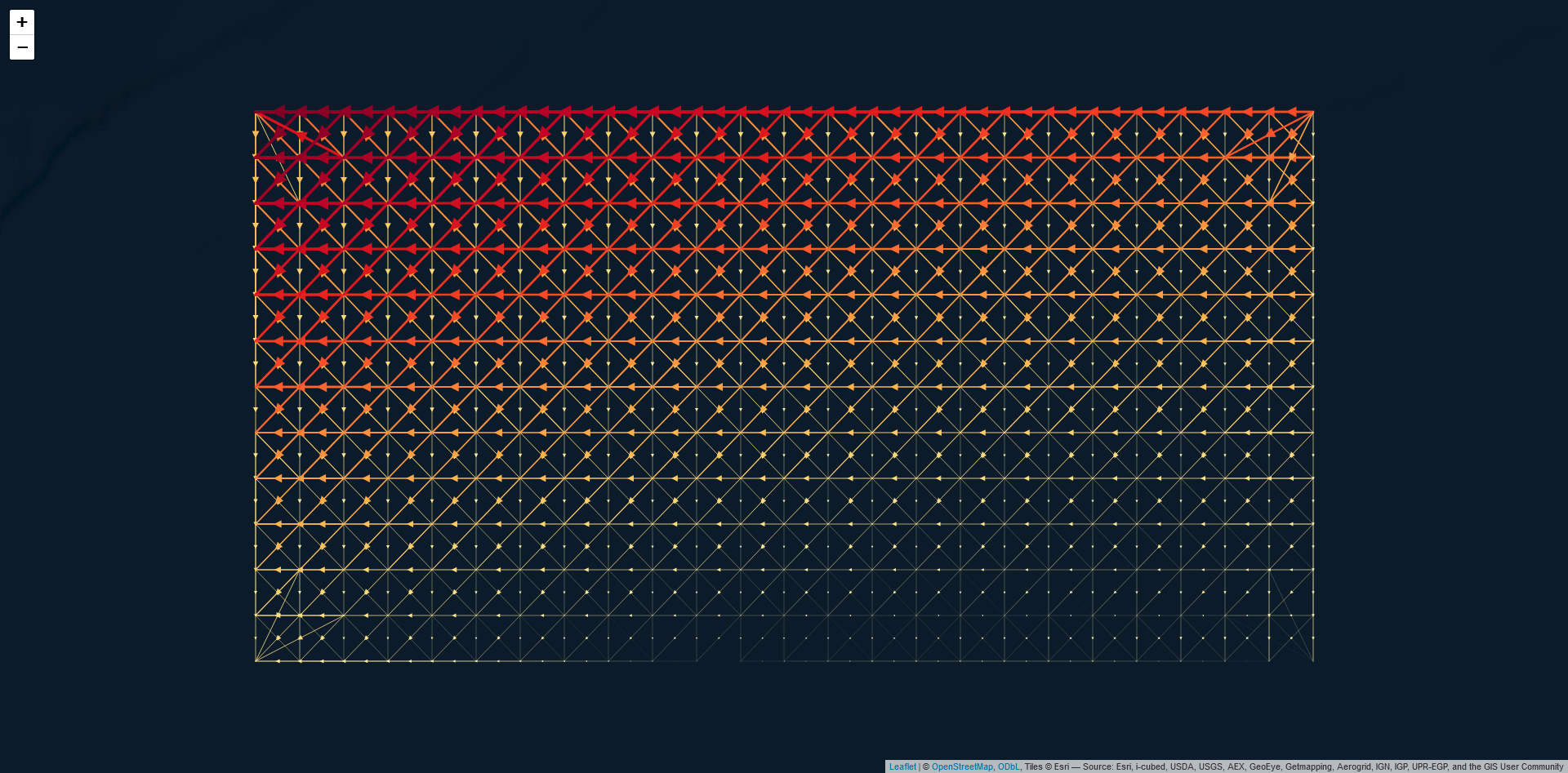

Figure 2: Flow leaflet map.

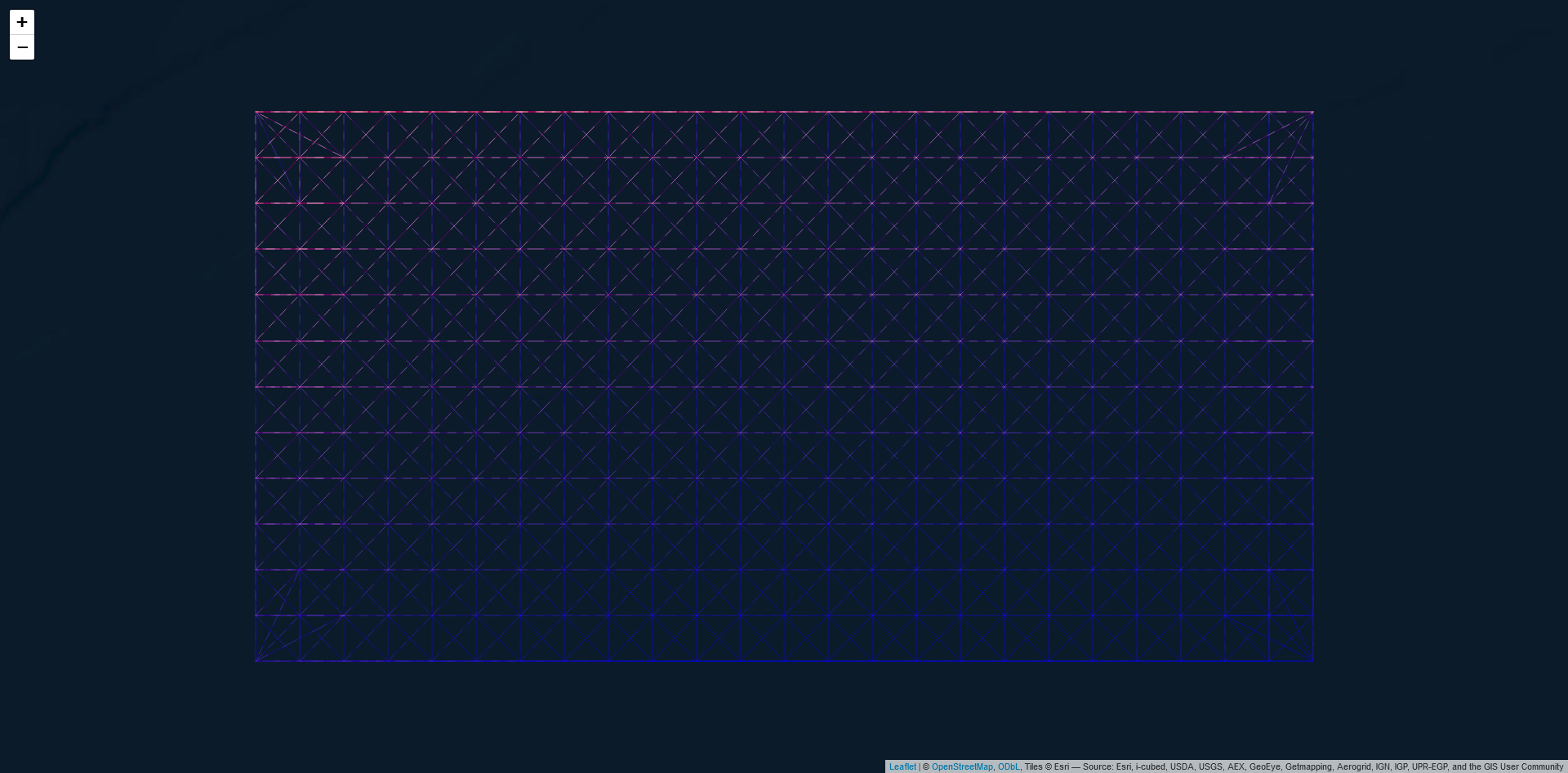

antpath_sfn(graph_result)
Figure 3: Antpath leaflet map.
